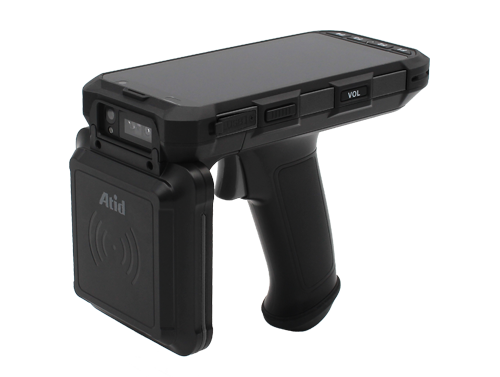

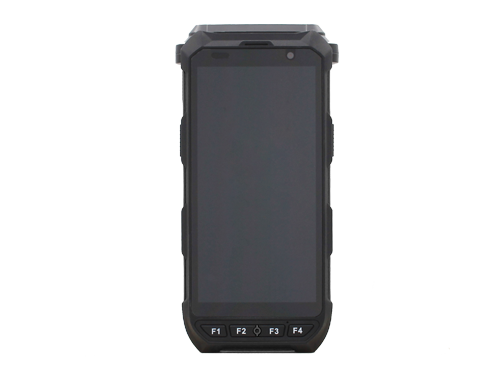

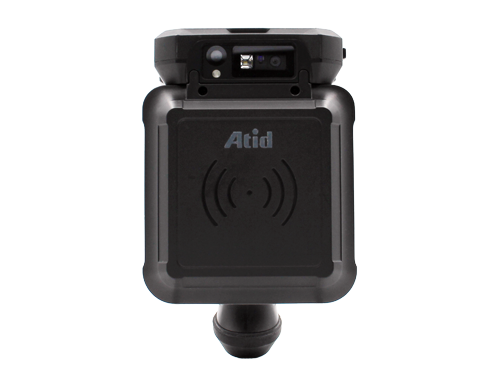

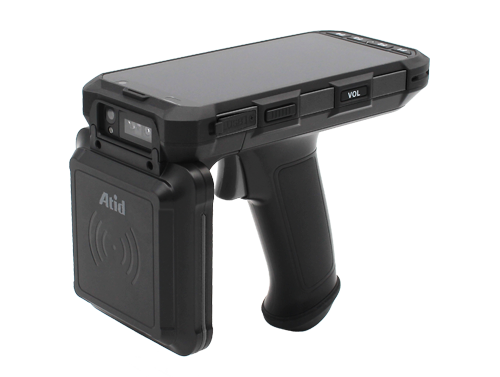

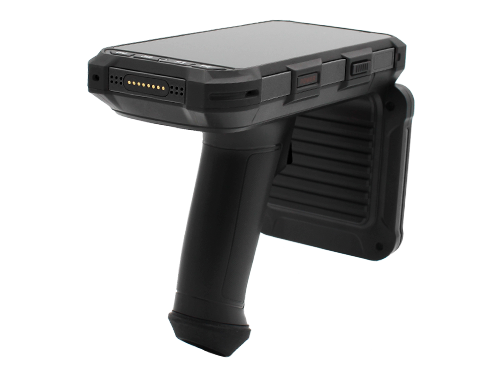

AT909

  • image
  • PRODUCT HIGHLIGHT

    – Android 13
    – Octa-Core 2.0 GHz
    – 5.5″ HD Display, Dual Camera (5MP / 13MP)
    – Memory 4GB RAM / 64GB ROM
    – 4.5 dBi High Gain UHF Antenna
    – UHF RFID EPC GEN2, ISO/IEC 18000-6C
    – Impinj E710 UHF RFID Module
    – 1D or 2D Barcode Scanner
    – 4G LTE, WLAN, BLE V5.0, GPS
    – 7,200 mAh Rechargeable Battery
    – Drop 1.5 m
    – IP65

  • FCC
    CE
    TELEC
    KC

    • Features & Specifications



    PERFORMANCE
    Processor Cortex A73, 2.0 GHz, Octa-Core
    Operating System Android 13
    Memory 4GB RAM / 64GB ROM
    PHYSICAL CHARACTERISTICS
    Dimensions
    (W x L x H)    		 170 x 80 x 145 mm
    Weight 600g (with Battery)
    Power 7,200mAh Li-ion Battery (Rechargeable)
    Adaptor : DC 5V / 3A
    Display 5.5″ IPS HD (720×1440)
    USB Interface 1 USB Port / Type-C
    Notification LED Indicator, Speaker, Vibrator
    Slot Sim Card Slot X 2
    PSAM Card Slot X 2
    TF Card Slot (Support up to 256GB) X 1
    DATA COLLECTION
    RFID (UHF) Protocol : EPC GEN2, ISO/IEC 18000-6C
    Reading Range : ~10m (Depending on environment and tag type)
    Writing Range : ~0.5m (Depending on environment and tag type)
    RF Output : 1W (30dBm, MAX)
    Antenna : Circularly Polarized Antenna (4.5 dBi)

    Support Frequency (Optional)
    US/FCC : 902~928MHz
    EU/CE : 865~868MHz

    HF RFID
    (Optional)    		 Frequency : 13.56MHz
    Protocol : ISO14443A & 15693, NFC-IP1, NFC-IP2
    R/W Range : 2~5 cm
    Barcode 2D Engine
    (Support to read 1D & 2D Barcode)
    Camera Front : 5 Mega Pixcel / Rear : 13 Mega Pixcel
    WIRELESS COMMUNICATION
    Bluetooth BT V2.1+EDR / BLE V5.0
    GPS Embedded A-GPS, Tolerance ±5m
    WLAN 802.11a/b/g/n/ac (2.4GHz/5GHz)
    WWAN 2G: GSM/GPRS/EDGE (850,900,1800,1900MHz)
    3G: WCDMA (850,900,1900,2100MHz)
    4G: TDD-LTE(38,39,40,41), FDD-LTE(1,2,3,4,5,7,8,12,17,20)
    USER ENVIRONMENT
    Operating Temperature -20℃ to 50℃
    Storage Temperature -20℃ to 70℃
    Humidity 5~95% (non-condensing)
    Drop Specification 1.5m
    Dust & Water Proof IP65

    ▪ Some features are optional and must be selected upon purchase.
    ▪ All Features and specifications described are subject to change without notice.

    Accessories

    Charger Adaptor
    Support 5V / 3A
    USB Cable USB Cable
    USB Type-C / 1.5m
    Handstrap Hand Strap
    Hand Strap adds protection against accidental drops

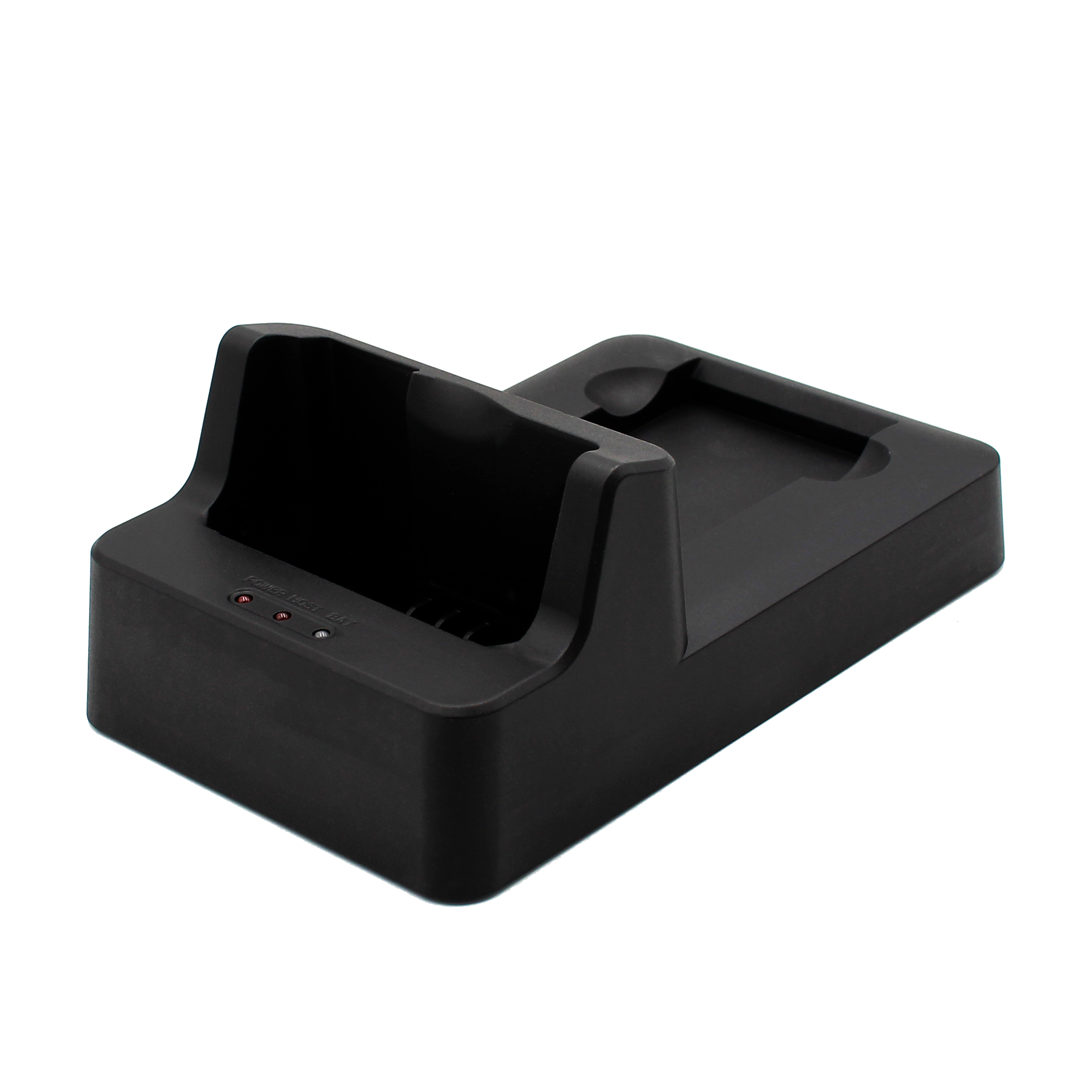

    Handstrap Charging Cradle (Optional)
    Charging Cradle for charging Body and Battery

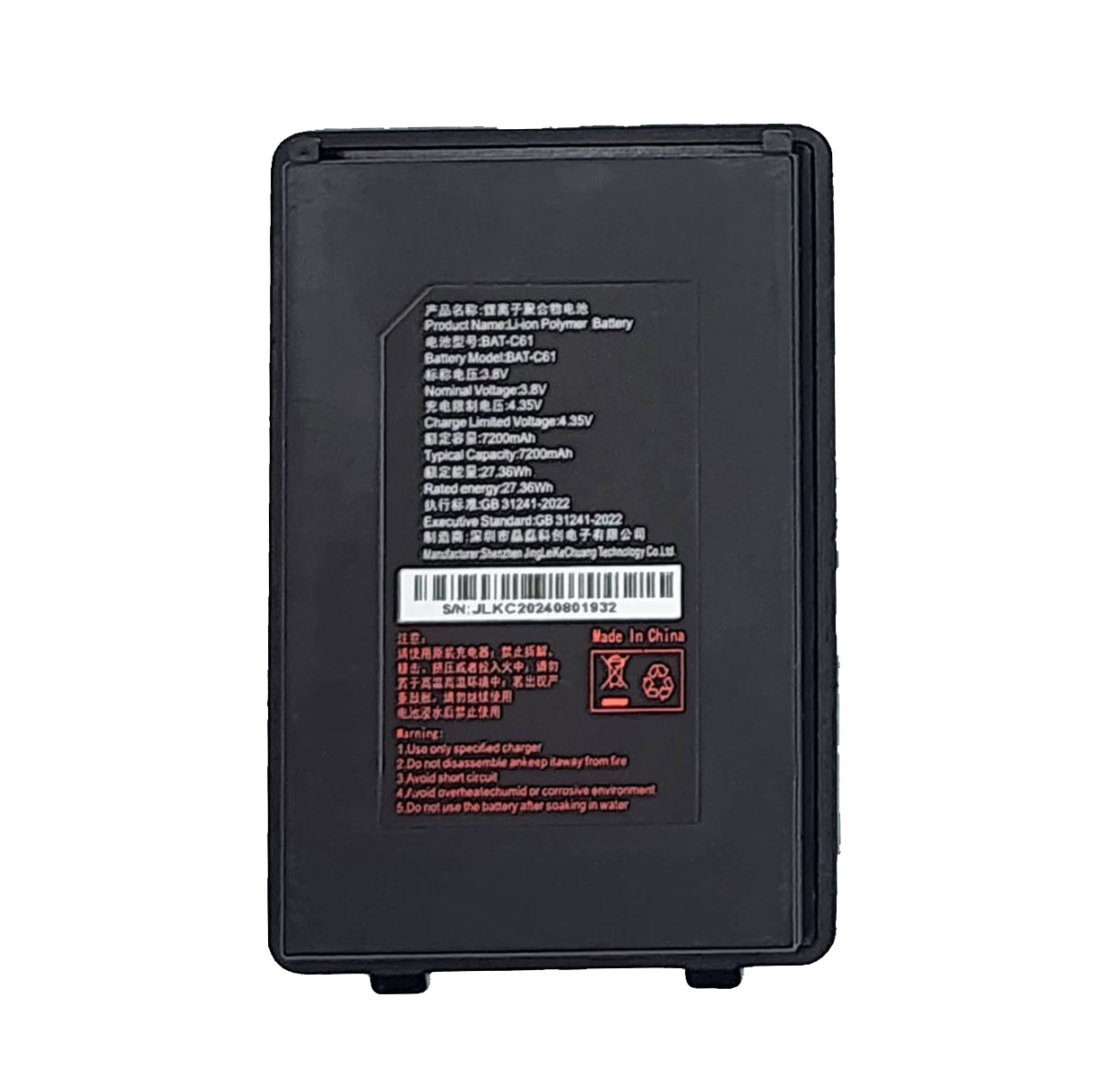

    Battery Battery
    7,200mAh Proprietary Battery
