AT907

  • image
  • PRODUCT HIGHLIGHT

    – Android 10
    – Octa-Core 2.0 GHz
    – 5.5″ HD Display, Dual Camera (5MP / 13MP)
    – Memory 4GB RAM / 64GB ROM
    – 4dBi High Gain UHF Antenna
    – RFID UHF GEN2, ISO/IEC 18000-6C/6B (Option)
    – 1D or 2D Barcode Scanner
    – 4G LTE, WIFI, BLE V4.2, GPS
    – 9,000 mAh Rechargeable Battery
    – Drop 1.5 m
    – IP65

  • D
    FCC
    CE
    D
    D
    D

Features & Specifications



PERFORMANCE CHARACTERISTICS
Processor Octa-Core 2.0 GHz
Operating System Android 10
Memory 4GB RAM / 64GB ROM
PHYSICAL CHARACTERISTICS
Dimensions
(W x L x H)
170 x 130 x 150 mm
Weight 650g
Power 9,000mAh Li-ion Battery (Rechargeable)
Standby : Over 200 hours
Continuous Use : Over 14 hours
(Depending on user environment)
Adaptor : DC 5V/3A
Display 5.5″ IPD HD (720Wx1440)
USB Interface 1 USB Port / Type-C / OTG
Notification LED Indicator, Speaker, Vibrator
Sensor Accelerometer
Slot 1x Sim Card Slot
1x TF Card Slot (Support up to 256GB)
1x PSAM Card Slot
DATA COLLECTION
RFID (UHF) Protocol : EPC GEN2, ISO/IEC 18000-6C
Reading Range : ~10m (Depending on environment and tag type)
Writing Range : ~0.5m (Depending on environment and tag type)
RF Output : 1W (30dBm, MAX)
Antenna : Circular Antenna (4dBi)

Support Frequency (Optional)
US/FCC : 902~928MHz
EU/CE : 865~868MHz
KR/KC : 917~921MHz
JP/TELEC : 916~921MHz(1W), 916~924MHz(0.25W)

Barcode 2D Engine
(Support to read 1D & 2D Barcode)
Camera Front 5MP, Rear 13MP
WIRELESS COMMUNICATION
Bluetooth BT V2.1+EDR / BLE V4.2
GPS GPS, Tolerance ±5m
WLAN 802.11a/b/g/n/ac (2.4GHz/5GHz)
WWAN 2G: GSM/GPRS/EDGE (850/900/1800/1900MHz)
3G: WCDMA (850/1900/2100MHz)
4G: TD-LTE(38/39/40/41), FDD-LTE(1/2/3/4/7/17/20)
USER ENVIRONMENT
Operating Temp -20℃ to 50℃
Storage Temp -20℃ to 70℃
Charging Temp 0℃ to 45℃
Humidity 5~95% non-condensing)
Drop Spec 1.5m
Dust & Water Proof IP65

▪ Some Function and parts will be options.
▪ All Features and specifications described are subject to change without notice.

Accessories

Charger Adaptor
Support 5V/3A

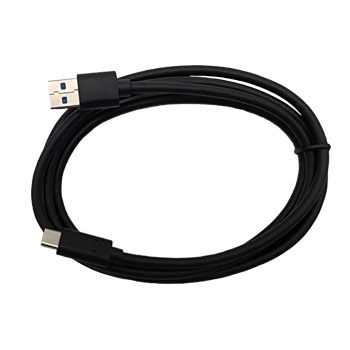

USB Cable USB Cable
USB Type-C / 1.5m
Handstrap Hand Strap
Hand Strap adds protection against accidental drops
Handstrap Charging Cradle (Optional)
Charging Cradle for charging Body and Battery
